CW Broadcast

FM Broadcast Transmitters & Accessories

We have transmitters for LPFM, FM Translators and full power Broadcasters, all at affordable prices & with excellent service!

CW Broadcast transmitters are available in two main groups. The lower power ES series have power levels from 50 to 1,050Watts. The high powered PS series range from 1,500W to 5,000W and feature advanced internal control and monitoring systems that includes sophisticated setup and operating software (included).

Looking for LPFM Info? Click Here

Below: The ES series (50W to 1050W)

CW Broadcast FM Transmitter Products -
ES

Below: The ES Series Rear Panel

ES Series Back Panel

Buy with confidence!
All ES series transmitters feature a 24 month warranty backed by CircuitWerkes!

FM1050ES Transmitter

Our ES Series transmitters offer output powers from 50 watts to 1200 watts. Our lowest power transmitter, the FM50ES is a perfect solution for those breaking into FM broadcasting on a small-scale. Whether you are setting up a new radio station for a church, a school, or non-profit, this unit will help you get on the air quickly and cost effectively.

The ES Series can be used as a stand alone transmitter or translator. All models have front panel programmable FSK ID. They are perfect for small markets as a main analog transmitter, as well as for LPFM applications and can also be used as an emergency or back up at the largest stations.

Meets or exceeds all FCC standards**. The FM150ES and FM300ES are FCC type certified for use on LPFM stations.

Transmitters with DDS Exciter

FM50ES (55W max)

MSRP:
$2,999

FM150ES (165w Max)

$3,850

FM300ES (330W Max)

$4,549

FM500ES (550W Max)

$5,550

FM750ES (775W Max)

$6,995

FM1200ES (1,250W Max)

$8,300

Amplifiers Only

NO EXCITER

4-8W Drive Required

FM300A

$3,549

FM500A

$4,549

FM750A

$5,995

FM1200A

$7,300

CW Broadcast High Powered transmitters from 1.5kW to 5.0kW

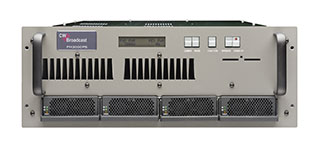

Below: A medium power 3kW Gamma Series Transmitter

PS Series Gamma Transmitter

Below: Gamma series back panel when used as an amplifier. Gamma units can be either amps or a complete transmitter (with internal exciter). Output connector options include 7/8" EIA flange (shown) or 7/16" DIN.

Gamma Amp Back Panel

Gamma Series 1500-5,000 Watts

CW_Broadcast
GammaTransmitter

The Gamma FM Series achieves up to a maximum of 80% efficiency with LDMOS based amplifiers. This results in a low cost of ownership. There is also additional cost savings resulting from the lower heat generation of these amplifiers. Less power being lost to generated heat requires reduced power requirement by HVAC systems to cool the transmitter building. The electric power savings in this new PTEK design is significant.

1000 watt power amplifier modules keep the GAMMA reliable and coupled with the hot pluggable power supplies ensures you stay on air.

Meets or exceeds all FCC standards**.

Transmitters with DDS Exciter

Gamma 1500

Max W
1,600W

MSRP:
$11,350

Gamma 2000

2,100W

$12,499

Gamma 2500

2,650W

$13,399

Gamma 3000

3,200W

$14,999

Gamma 3500

$3650W

$16,949

Gamma 4000

4,250W

$19,500

Gamma 4500

4,750W

$20,850

Amplifiers Only

NO EXCITER

50 W Drive Required***

PS1.5A

Max W
1,600W

MSRP: $10,350

PS2A

2,100W

$11,449

PS2.5A

2,650W

$12,349

PS3A

3,200W

$13,399

PS3.5A

3,650W

$15,949

PS4A

4,250W

$18,500

PS4.5A

4,750W

$19,850

***An optional IPA can be added (+$150) for systems where 5-7W of drive is required.

**All CW Broadcast transmitters exceed FCC emissions standards out of the box.
Additional output filter modifications are available for customers requiring ultra
low spurious emissions. Reduces out of band energy by an additional 20-25dB
(typically approx -100 dBu). Call (509) 290-6652 or email us for details.

TRANSMITTER REMOTE CONTROL
The full line of CW Broadcast transmitters include a complete remote control interface (for external remote controls) on the rear D-25 connector. The RC interface includes basic operational analog I/O such as primary metering along with GPI inputs for On/Off and Raise/Lower. Serial commands and serial data outputs are also available on the D-25. Simple serial commands can be entered via a terminal program for basic transmitter commands. Additionally, CW Broadcast offers an inexpensive line of internal and external Web-based network remote controls (see below) to enhance your control and monitoring capabilities.

D25 Remote
Control Interface Pinout

D25 Remote
Control Interface Pinout

Webserver Remote Controls:
CW
Broadcast External RC

CW
Broadcast External RC

We produce Internal remote controls for the ES series. Also available is an inexpensive universal external remote control that works with both the ES and Gamma transmitters. The external remote control can be added in the field to any CW Broadcast transmitter. Also works with PTEK Gamma or ES series transmitters made since 2013.

CW-Broadcast_Web_Controller_Main

Main Page of the CW Broadcast Transmitter Webserver

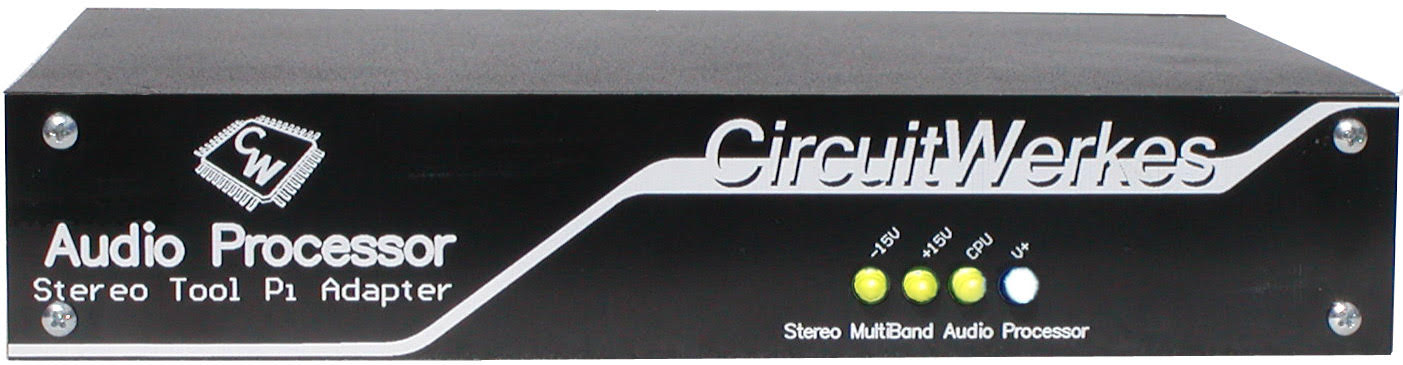

Audio Processing (Coming Soon)

Used & Refurbished Transmitters: From time to time we accept trade ins of working equipment from customers that want to upgrade to more powerful or newer transmitters. Click here for our current list of used equipment available for direct sale.

Other Products: CW Broadcast has strategic alliances with other broadcast equipment manufacturers. We can offer you antennas, feedline, FM Combiners/Diplexers and other essential equipment for building out your transmitter plant.
